Function and Product Features of the Wunderlich ULTIMATE Engine Protection Bars
- Wunderlich ULTIMATE Engine Protection Bars are designed without compromise for their protective capability in Adventure Riding
- Maximum protection is achieved through additional structural reinforcements, significantly enhancing the rigidity of the protection bars
- Ensuring perfect safeguarding of cylinders, valve covers, and both lambda probes reduces the risk of costly motorcycle damage
- Uniform distribution of forces on four mounting points per side of the vehicle
- The bars’ design is precisely tailored to the contours of the Boxer engine
- No compromise on ground clearance
- Plug & Play fit: straightforward installation with a comprehensive assembly guide
- also fits with original BMW cylinder head cover
Technical Specifications
- Material
- High-quality precision steel tube with high tensile strength and elongation at fracture, carefully handcrafted, precise radii and clean weld seams, accurate connections
- Dimensions
- Tubing diameter 25 millimeters
- Colour
- Black powder-coated
Your Wunderlich Advantages
- Wunderlich Premium Product. Small series. Handmade
- Wunderlich Design. Integrated and functional
- Made in Germany
- Wunderlich 60/5
- 60-day return policy – Test without risk!
- Plus 5-year warranty.
World-traveling Adventure Riders are familiar with this scenario: there are days when the motorcycle falls over multiple times due to conditions one cannot imagine in the civilized and well-paved roads of Europe. Or it may happen because of physical exhaustion, extreme weather, or a lack of strength to keep the bike upright. Beyond civilization, it becomes even more crucial to have reliable equipment that can withstand the associated wear and tear and endure without failing, as it can be vital to remain mobile, in constant motion, and self-reliant in order to minimize personal risk to the maximum.

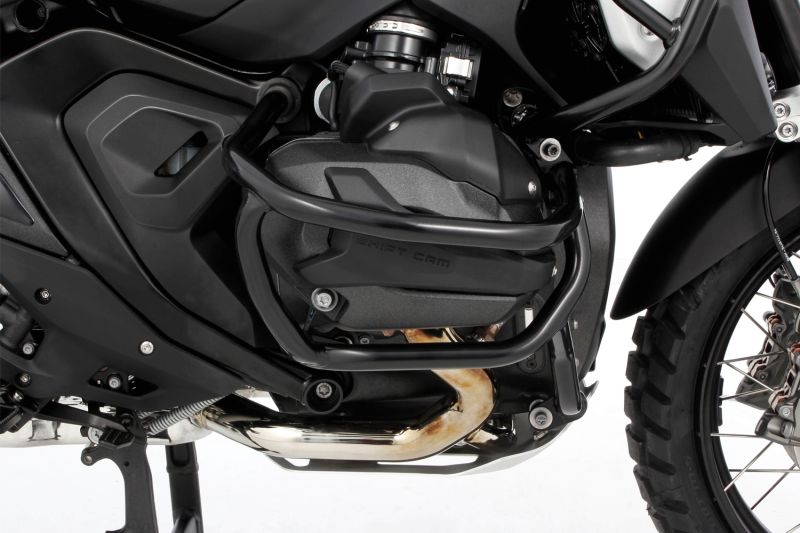

This Wunderlich ULTIMATE Engine Protection Bar is specially designed for Adventure Riding.
It not only reliably protects the cylinders and valve covers but also both lambda probes. The all-around protection concept enhances passive safety and, therefore, riding pleasure. In the event of a fall or tip-over, the acting forces are optimally distributed across the protection bar structure to the robust mounting points, thereby avoiding force and torque peaks and effectively reducing material stress.

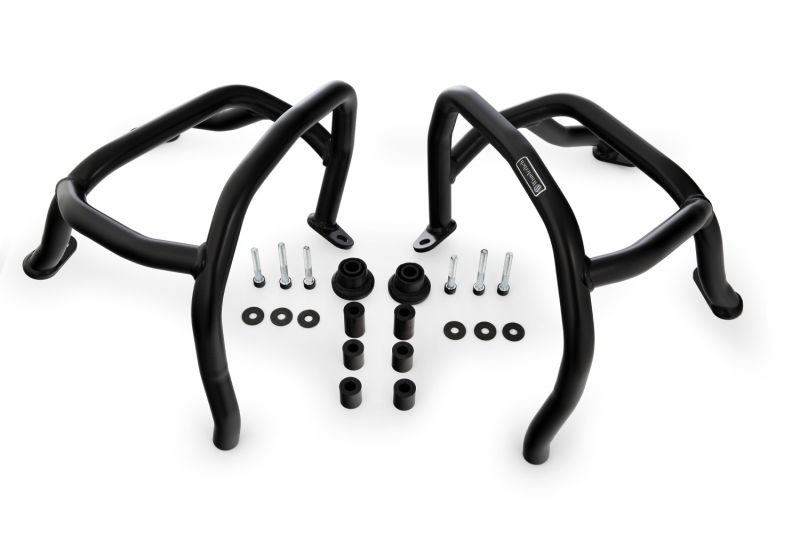

The engine protection bar structure is made of 25-millimeter precision steel tubing. The tubing segments are shaped on CNC tube bending machines and then neatly welded. Visually, the protection bar seamlessly integrates into the motorcycle’s design, complementing its distinctive appearance.
In our protection bars, the protective function and product design take center stage. The engine protection bar enhances your BMW in a high-quality manner. The surface is glass bead blasted, additionally electropolished, and finally powder-coated in black.
13200-102
Suunniteltu ja valmistettu Saksassa.
5 vuoden takuu.
Tuotenumero: 13201-002
Tuote täyttää TUV Rheinland laatu- ja turvallisuus standardit.
